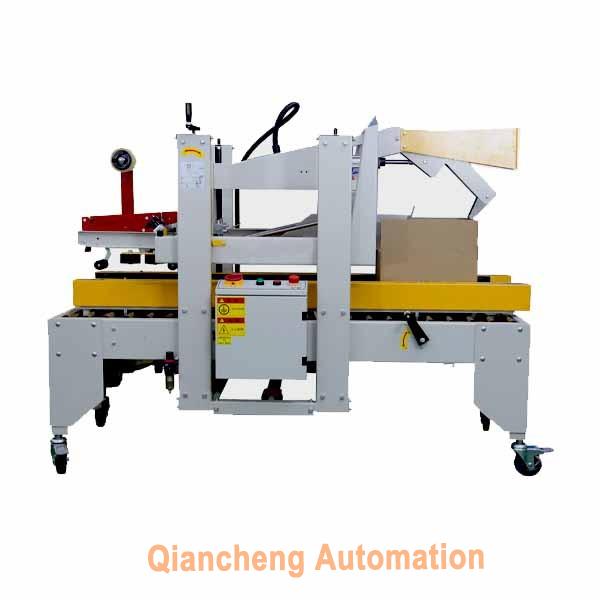

Automatical Carton Folder Sealer

Automatically Carton Folder Sealer can fold the top flaps and tape the top of the cartons automatically at a high speed, about 20 cartons per minute. Before this Folder Sealer, there normally are a Carton Bottom Sealer and a conveyor. The operators fold the bottom flaps, and then put the carton to the Bottom Sealer to tape the bottom, then the bottom sealed empty cartons are conveyed slowly, workers put the commodities into the cartons, then the cartons are passed through the Carton Folder Sealer to complete the folding and tapes works. This packing machine is applied for bulk orders.

Model: FXJ5050-FD

Power: 220V 50/60HZ

Sealing speed: 0-20 cartons/min

Maximum folding size: L600*W500*H500mm

Minimum folding siz: L200*W130*H140mm

Tape width: 4.8mm,customizable

Machine size: L1800*W830*H1340mm

Packed size: L1980*W1070*H1520mm

Machine weight: 240kg
