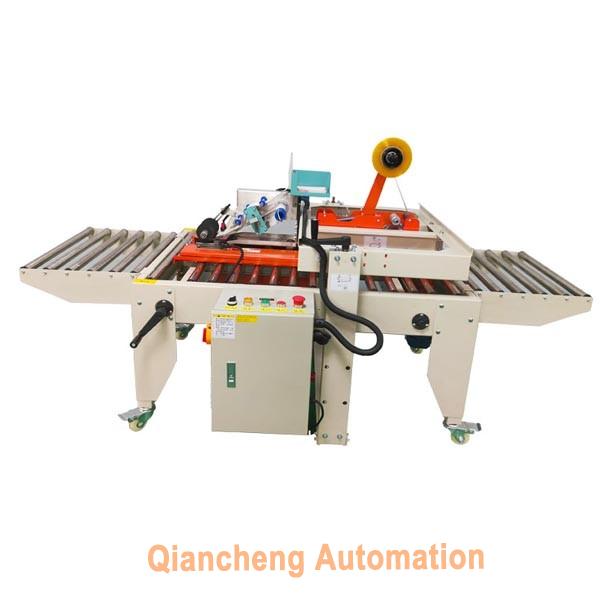

Carton sealing labeling machine

This carton sealer labeler machine is widely used to pack bulk orders, because it is semi-automated. Before sealing, manually adjust its sealing width and height. Bulk orders are packed in same sized cartons, so it's no need to adjust the sealing size every time.

Features:

1, automatically alarm to prompt the operator to replenish labels waybills.

2, unique rolling device, label supply will not be easy to break.

3, One-button start, fool-proof operation

4, can apply the label and seal the box separately or together.

5, Fast and smooth,stable label pasting

6, Suitable for batch sealing

Technical parameters:

Label feeder type: RCON stepper motor control

Sealing and labeling speed: 20-50 pieces/min or more, more than 1200 orders per hour.

                                        (Depending on the product size and the quality of the label)

Labeling accuracy: ±3mm (excluding the tollerance of the object and label)

Labeling speed: 24m/min

Conveyor belt speed: 24m/min

Minimum carton size: L130*W80*H90mm

Maximum carton size: L∞*W500*H500mm

Sealing speed: 24m/min

Applicable tape: W42-50mm

Side sticker length: 50-55mm

Table height: 570-790mm

Applicable instructions:

Suitable for manually folding cartons, adjusting width and height,  Cartons are driven by belts. Overall dimensions: about L1500×W950×H1000 (mm), subject to arraival.

Weight: about 120kg

Power: about 350W

Power supply: AC220V±5% 50/60Hz

Relative temperature of the operating environment: 0～50℃

Relative humidity: 15～90%
